詳細介紹

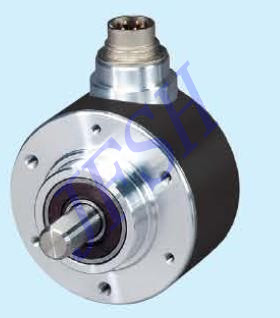

8 Shaft (FINS) and hollow shaft (FINH) encoder withthe same modular concept

8 Shaft diameters Ø 6 and Ø 10 mm for shafted encoders

8 Hollow shaft Ø 14 mm, aluminium reduction hubs of Ø 6, Ø 10 and Ø 12 mm

8 Robustness, excellent shock and vibrationresistance

8 Easily achievable high degree of protection IP 67 with special sealing flange for shafted versions

8 High resolutions available up to 80000 cpt in 3channels with complements

8 Available output signals: square wave,square wave programmable and sine wave

8 Simple programmable resolution through dipswitch, no software, no hardware required

8 Universal electronic circuits from 4.75 Vdc to 30 VDC

8 High operating temperature performance:-30 °C up to 100 °C (encoder temperature)

8 High frequency response performance of the output signals: 300 kHz (push-pull & RS422)

8 Glass disks in standard, available with unbreakable disks in Polyfas (CompositeMylar-Mica) in option for resolutions<2500 cpt and temperature <80 °C

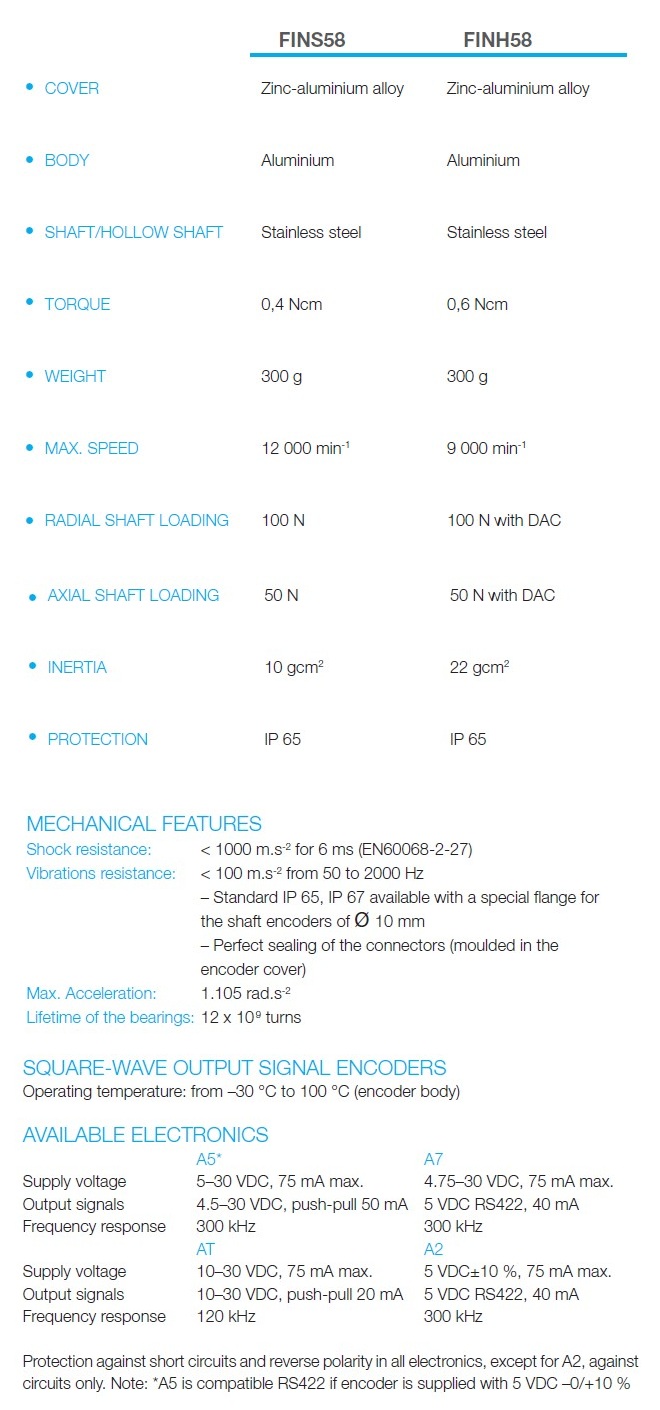

特性參數

注：詳細資料請(qǐng)緻電上海精芬機(jī)電技術(shù)部索取！
